COUPLING
	METAL CASTING FLANGE
	INSERT
	ADAPTER BACKING FLANGE
	TEFLON RING
	BELLOW WITH FLANGE
	VACCUM BELLOW
	ADAPTER BELLOW WITH FLANGE
	VACCUM BELLOW WITH FLANGE
	BELLOW FLANGES
	ADAPTER BELLOW FLANGE
	SITE GLASS

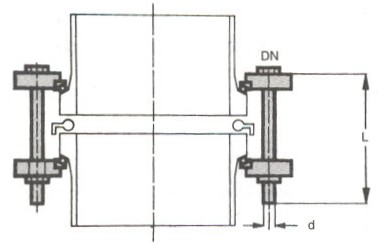

COUPLING

METAL CASTING FLANGE

Cat. Ref. DN D D1 D2 PCD n x dØ L L1 Type CF1 CF1.5 CF2 CF3 CF4 CF6 CF9 CF12 CF16 CF18 CF24 25 40 50 80 100 150 225 300 400 450 600 92 110 120 155 200 275 350 425 525 630 755 43 58 70 101 134 185 260 342 467 537 643 51 66 81 112 148 196 282 363 476 557 690 70 86 98 133 178 254 310 395 495 858 712 3 x 9Ø 3 x 9Ø 3 x 9Ø 6 x 9Ø 6 x 9Ø 6 x 9Ø 8 x 11Ø 12 x 11Ø 12 x 12Ø 12 x 14Ø 12 x 14Ø 10 10 12 12 12 15 28 34 22 37 50 6 6 8 8 8 8 8 8 8 8 5 A A A A A A B B A B C

INSERT

Cat. Ref. DN D D1 L Type CN1 CN1.5 CN2 CN3 CN4 CN6 CN9 CN12 CN16 CN18 CN24 25 40 50 80 100 150 225 300 400 450 600 50 65 80 111 147 195 280 361 474 555 684 34 48 61 90 119 168 240 324 431 500 634 10 10 8 9 10 10 10 10 12 18 10 A A B B B B B B B B C

ADAPTER BACKING FLANGE

Undrilling Flanges Cat. Ref. DN D D1 D2 L CFA1 CFA1.5 CFA2 CFA3 CFA4 CFA6 CFA9 CFA12 25 40 50 80 100 150 225 300 115 150 165 200 220 285 395 445 43 58 70 101 134 186 260 342 51 66 81 112 148 196 282 363 10 10 12 12 12 15 15 18

Drilled to Table F Cat. Ref. PCD n x dØ CFA1/F CFA1.5/F CFA2/F CFA3/F CFA4/F CFA6/F CFA9/F CFA12/F 87 105 127 165 190 260 356 438 4 x 16Ø 4 x 16Ø 4 x 16Ø 8 x 16Ø 8 x 16Ø 12 x 19Ø 12 x 23Ø 16 x 23Ø

TEFLON RING

Cat. Ref. DN D D1 d L TR1 TR1.5 TR2 TR3 TR4 TR6 TR9 TR12 TR16 TR18 TR24 25 40 50 80 100 150 225 300 400 450 600 42 57 70 100 134 186 260 342 467 537 686 33 48 59 88 119 168 236 318 435 490 640 3 3 3 3 4 4 4 4 6 6 8 5 5 5 5 6 6 7 7 7 7 10

VACCUM BELLOW

Cat. Ref. DN D D1 D2 L D2 L VB3 VB4 VB6 VB9 VB12 80 100 150 225 300 155 200 275 350 420 98 132 184 253 338 82 132 184 253 338 70 70 70 70 70 5 5 5 5 5 3.0 3.5 4.0 5.0 5.0

ADAPTER BELLOW WITH FLANGE

Cat. Ref. Undrilled Cat. Ref. Table E Cat. Ref. Table F Cat. Ref. ASA 150 DN D L FBF1 FBF1.5 FBF2 FBF3 FBF4 FBF6 FBF9 FBF12 FBF1/E FBF1.5/E FBF2/E FBF3/E FBF4/E FBF6/E FBF9/E FBF12/E FBF1/F FBF1.5/F FBF2/F FBF3/F FBF4/F FBF6/F FBF9/F FBF12/F FBF1/A FBF1.5/A FBF2/A FBF3/A FBF4/A FBF6/A FBF9/A FBF12/A 25 40 50 80 100 150 225 445 115 150 165 200 220 285 395 445 60 65 65 65 65 65 65 65

VACCUM BELLOW WITH FLANGE

Cat. Ref. Undrilled Cat. Ref. Table E Cat. Ref. Table F Cat. Ref. ASA 150 DN D L VBF3 VBF4 VBF6 VBF9 VBF12 VBF3/E VBF4/E VBF6/E VBF9/E VBF12/E VBF3/F VBF4/F VBF6/F VBF9/F VBF12/F VBF3/A VBF4/A VBF6/A VBF9/A VBF12/A 80 100 150 225 300 200 220 285 395 445 70 70 70 70 70

BELLOW FLANGES

Cat. Ref. DN D D1 D2 D3 L L1 L2 BF1 BF1.5 BF2 BF3 BF4 BF6 BF9 BF12 25 40 50 80 100 150 225 300 95 110 120 155 200 275 350 425 43 58 70 101 134 186 260 342 51 66 81 112 148 196 282 363 33 45 57 84 113 164 234 310 7 7 7 7 8 8 8 10 3 3 3 3 3 3 3 5 6 6 6 6 6 6 6 8 Drilling Details Cat. Ref. PCD n x dØ n x dØ BF1 BF1.5 BF2 BF3 BF4 BF6 BF9 BF12 70 86 98 133 175 254 310 395 3 x 9Ø 3 x 9Ø 3 x 9Ø 6 x 9Ø 6 x 9Ø 6 x 9Ø 8 x 11Ø 12 x 11Ø 2 x 9Ø 2 x 9Ø 2 x 9Ø 2 x 9Ø 2 x 9Ø 2 x 9Ø 2 x 11Ø 2 x 11Ø

ADAPTER BELLOW FLANGE

Undrilling Flanges Cat. Ref. DN D D1 D2 L BFA1 BFA1.5 BFA2 BFA3 BFA4 BFA6 BFA9 BFA12 25 40 50 80 10 150 225 300 115 150 165 200 220 285 395 445 43 58 70 101 134 186 260 342 51 66 81 112 148 196 282 363 7 7 7 7 8 8 8 10

Drilled to Table E Cat. Ref. PCD n x dØ BFA1/E BFA1.5/E BFA2/E BFA3/E BFA4/E BFA6/E BFA9/E BFA12/E 82 98 114 146 178 235 324 406 4 x 12Ø 4 x 12Ø 4 x 16Ø 4 x 16Ø 8 x 16Ø 8 x 19Ø 12 x 19Ø 12 x 23Ø

Drilled to Table F Cat. Ref. PCD n x dØ BFA1/F BFA1.5/F BFA2/F BFA3/F BFA4/F BFA6/F BFA9/F BFA12/F 87 105 127 165 190 260 356 438 4 x 16Ø 4 x 16Ø 4 x 16Ø 8 x 16Ø 8 x 16Ø 12 x 19Ø 12 x 23Ø 12 x 23Ø

Drilled to Table ASA 150 Cat. Ref. PCD n x dØ BFA1/A BFA1.5/A BFA2/A BFA3/A BFA4/A BFA6/A BFA9/A BFA12/A 79 98 121 152 190 241 298 432 4 x 16Ø 4 x 16Ø 4 x 19Ø 4 x 19Ø 8 x 19Ø 8 x 19Ø 8 x 19Ø 12 x 23Ø

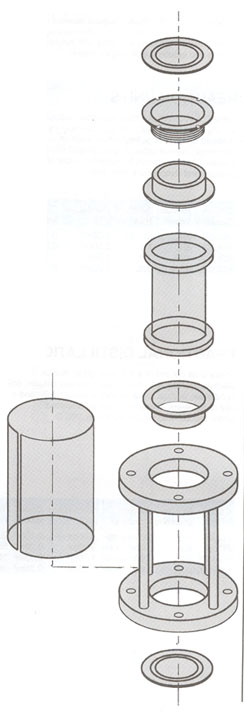

SITE GLASS

MS FRAME SIGHT GLASS DN L L1 Cat. Ref. Table E Cat. Ref. Table F Cat. Ref. Table ASA 25 40 50 80 100 150 192 192 192 192 192 192 150 150 150 150 150 150 SG1/E SG1.5/E SG2/E SG3/E SG4/E SG6/E SG1/F SG1.5/F SG2/F SG3/F SG4/F SG6/F SG1/A SG1.5/A SG2/A SG3/A SG4/A SG6/A

SS 304 FRAME SIGHT GLASS DN L L1 Cat. Ref. Table E Cat. Ref. Table F Cat. Ref. Table ASA 25 40 50 80 100 150 192 192 192 192 192 192 150 150 150 150 150 150 SG1/E/304 SG1.5/E/304 SG2/E/304 SG3/E/304 SG4/E/304 SG6/E/304 SG1/F/304 SG1.5/F/304 SG2/F/304 SG3/F/304 SG4/F/304 SG6/F/304 SG1/A/304 SG1.5/A/304 SG2/A/304 SG3/A/304 SG4/A/304 SG6/A/304

MS 316 FRAME SIGHT GLASS DN L L1 Cat. Ref. Table E Cat. Ref. Table F Cat. Ref. Table ASA 25 40 50 80 100 150 192 192 192 192 192 192 150 150 150 150 150 150 SG1/E/316 SG1.5/E/316 SG2/E/316 SG3/E/316 SG4/E/316 SG6/E/316 SG1/F/316 SG1.5/F/316 SG2/F/316 SG3/F/316 SG4/F/316 SG6/F/316 SG1/A/316 SG1.5/A/316 SG2/A/316 SG3/A/316 SG4/A/316 SG6/A/316
