BVR structures are
designed to support plant and other
equipment comprising components exclusively
or principally in borosilicate glass
3.3. Because of the special requirements
resulting from the use of this material,
structures are now available in the
form of a proven modular system that
not only meets standard requirements
but also provides or facilitates solutions
for problems of a very special nature.

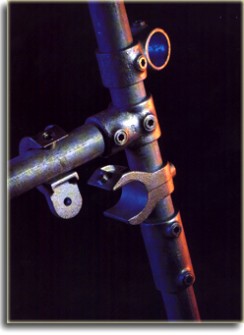

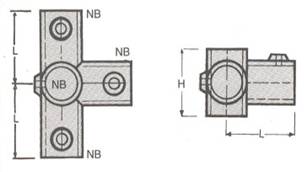

Basically these structures consist of
steel tubing in three different diameters,
which is connected
using the appropriate fittings. As a
result, the structures cannot only be
dismantled and reassembled whenever
required but they can also be modified
and added to quite easily. The modular
system also includes components for
establishing fixed points, supporting
spherical and cylindrical vessels and
horizontal cylindrical components plus
a wide range of supports, to mention
just the most important items. The result
is an extremely flexible system.
Please contact us for further specific
requirements.

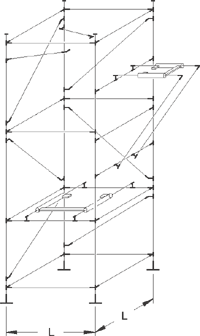

Design of tubular structures :
The diameter of structure tubing to be used plus
minimum dimensions, i.e. width and depth
of tubular structures are determined
by the nominal size (cylindrical glass
components) or diameter (spherical vessels)
and the weight of the components they
are designed to support.
Support structures must be sufficiently
rigid to prevent any bending of the
individual tubes in excess of the permissible
amount and the subsequent transfer
of external stress to the glass components.
This is achieved by incorporating additional
bracing.
The establishment of fixed points is
of particular importance. They are formed
by combining a light duty support frame
or heavy duty support frame with a coupling,
a support plate or a support element
(vessel holder, angle bracket, etc.).
Fixed points have to carry the entire
weight of a unit or column and should
therefore, be located at the lowest
point (in the case of a vessel holder)
or lowest possible point (in the case
of a support plate) in the installation.
Please note: Assembly of the
glass components must always be started
from the fixed point.
Glass units and their structures expand
at different rates as a result of change
in temperature. The unit must, therefore,
be able to expand above the fixed point
without restraint.
Guides giving lateral support must always
be provided for units and columns.
Guide elements should not be bolted
rigidly to the unit or plant during
operation.
Where supports are used in a structure
for individual components or assemblies,
these should be installed in such a
way that the glass components are subject
in the main to compressive forces. It
has to be taken into consideration,
that normally an additional fixed point
is created at such points.
Please note: Glass components
must be able to expand freely from a
fixed point, therefore a bellow is generally
fitted between two fixed points.
If there is the risk of vibration generated
in the vicinity of glass units being
transferred to the tubular structure,
appropriate preventive measures should
be taken.
The structure components described can
also be used to support platforms and
walkways for the use of plant operators
and maintenance staff. They are connected
directly to the plant support structure,
which results in a particularly compact
design. The decking of these platforms
and walkways is in the form of grids
or embossed metal sheets.
Supporting Horizontal
Pipeline :
Both horizontal and vertical pipelines must be supported
at certain intervals to avoid subjecting
them to additional stress due to bending
or lateral movement (e.g. on either
side of bellows). For details please
contact us.
|
|
STRUCTURED
TUBE GALVANIZE |
|
NB
Inches |
NB
mm |
External
Diameter |
1/2"
1"
1 1/2"
1 1/2
2" |
15
25
30
40
50 |
19.5
32.5
41.5
48.3
60.3 |
|
|
Structure |
NB
mm
|
Dimension |
15 |
25 |
30 |
40 |
50 |
For Vertical Installation |
2500
3000
3500
4000
6000 |
-
-
-
-
- |
2500
3000
3500
-
6000 |
-
3000
3500
4000
6000 |
-
-
-
-
6000 |
-
-
-
-
6000 |
For Frames |
400
500
600
800
1000
1200
1500 |
-
-
-
-
-
-
- |
365
465
565
765
965
1165
1465 |
355
455
555
755
955
1155
1455 |
345
445
545
745
945
1145
1445 |
335
435
535
735
935
1135
1435 |
For Supports |
400
500
600
800
1000
1200
1500 |
435
535
635
835
1035
1235
1535 |
435
535
635
835
1035
1235
1535 |
445
545
645
845
1045
1245
1545 |
455
555
655
855
1055
1255
1555 |
465
565
665
865
1065
1265
1565 |
|
|
|
|
