Available with CE Marking as per PED 97/23/EC

LINE VALVES
Catref
PV07
PV1
PV1.5
PV2
PV3
PV4
PV6
D
15 (0.7)
25 (1)
40 (1.5)
50 (2)
80 (3)
100 (4)
150 (6)
L
100 (4)
190 (7.5)
245 (9.6)
275 (10.8)
400 (15.8)
580 (22.8)
725 (28.5)
L1
125 (5)
180 (7)
230 (9)
305 (12)
380 (15)
580 (22.8)
610 (24)
Max. Working
Pressure
(Kg/cm2)
3.6 (51.2)
3.6 (51.2)
3.1 (44)
2.1 (29.8)
1.6 (22.7)
1.0 (14.2)
0.8 (11.4)

DRAIN VALVES
Catref
PV 1/58
PV 1.5/1
PV 1.5/58
KV 1/58
D
25 (1)
40 (1.5)
40 (1.5)
25(1)
d
18 (0.7)
30 (1.2)
18 (0.7)
18 (0.7)
L
100 (4)
185 (7.3)
100 (4)
100 (4)
L1
140 (5.6)
200 (7.9)
150 (6)
140 (5.5)

Type of buttress end
Flat
Flat
Flat
Female spherical
Max. working pressure (kg/cm2)
3.6 (51.2)
3.6 (51.2)
3.6 (51.2)
3.6 (51.2)

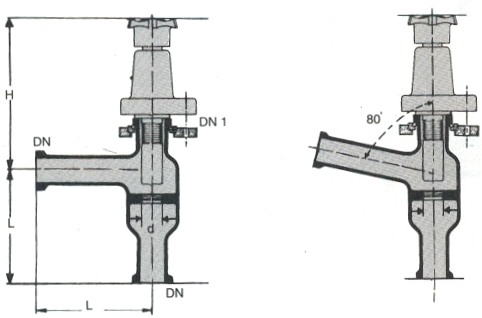

ANGLE VALVES

Cat ref
DN
DN1
d
L
H
Degree
PVE 1
25
25
18
100
175
90
PVE 1/80
25
25
18
100
175
80
PVE 1.5
40
40
26
150
200
90
PVE 2
50
50
38
150
220
90

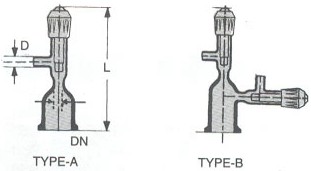

VACUUM STOPCOCKS

Catref
DN
D
d
L
Type
VST 1
25
11
10
150
A
VST 1.5
40
11
10
150
A
VSTR 1
25
11
10
150
B
VSTR 1.5
40
11
10
150
B

DIAPHRAGM VALVES

Catref
DVS 1
DVS 1.5
D
25 (1)
40 (1.5)
L
162 (6.4)
185 (7.25)
L1
50 (2)
55 (2.25)
L2
90 (3.5)
115 (4.5)
Max.working pressure kg/cm2 (lb/in2)
4.6 (65.4)
3.5 (49.7)

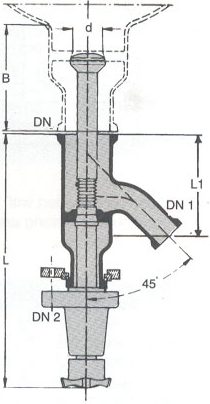

FLUSH BOTTOM VALVES
Cat. ref.
BAS 1.5
D
40 (1.5)
D1
2.5 (1)
L
260 (10.2)
L1
105 (4.1)
L2
75 (3)
L3
100 (4)
L4
30 (1.2)
L5
20 (1.8)

NON RETURN VALVES
Catref
NRD07
NRD1
NRD2
NRD3
D
15 (0.7)
25 (1)
50 (2)
80 (3)
d
5 (0.19)
10 (0.39)
19 (0.75)
30 (1.25)
L
19 (0.75)
25 (1)
41 (1.6)
65 (2.5)
