SINGLE NECK WITH BOTTOM OUTLET
Cat. Ref.
Nominal Camacity
L
DN
DN1
VA 5
5 L
375
40
25
VA 10
10 L
450
40
25
VA 20
20 L
525
80
25
VA 50
50 L
725
100
40
VA 100
100 L
825
150
40
VA 200
200 L
1075
225
40

TWO NECK WITH BOTTOM OUTLET
Cat. Ref.
VS 50/B
VS 100/B
VS 200/B
D
100 (4)
150 (6)
225 (9)
D1
40 (1.5)
40 (1.5)
40 (1.5)
D2 at 10
40 (1.5)
40 (1.5)
40 (1.5)
L
735 (29)
825 (32.5)
1080 (42.5)
Nom. Cap. (lit.)
50
100
200
Working Cap. (lit.)
60
3.6 (51.2)
3.6 (51.2)

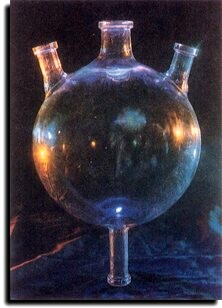

THREE NECK WITH BOTTOM OUTLET

Cat. Ref.
Nominal Camacity
L
DN
DN1
DN2
VSM 5
5 L
425
40
25
25
VSM 10
10 L
500
40
25
25
VSM 20
20 L
575
80
25
25
VSM 50
50 L
825
100
40
40
VSM 100
100 L
925
150
40
40
VSM 200
200 L
1175
225
40
40

FOUR NECK WITH BOTTOM OUTLET

Cat. Ref.
Nominal Camacity
L
DN
DN1
DN2
DN3
VSPL 5
5 L
425
40
25
25
40
VSPL 10
10 L
500
40
25
25
40
VSPL 20
20 L
575
80
25
25
40
VSPL 50
50 L
825
100
40
40
100
VSPL 100
100 L
925
150
40
40
100
VSPL 200
200 L
1175
225
40
40
100

FIVE NECK WITH BOTTOM OUTLET

Cat. Ref.
Nominal Camacity
L
DN
DN1
DN2
DN3
VSL 5
5 L
425
40
25
25
40
VSL 10
10 L
500
40
25
25
40
VSL 20
20 L
575
80
25
25
40
VSL 50
50 L
825
100
40
40
100
VSL 100
100 L
925
150
40
40
100
VSL 200
200 L
1175
225
40
40
100

REACTION VESSEL CYLINDRICAL
Cat. Ref.
VZ 5/6
VZ 10/6
VZ 20/9
VZ 30/12
VZ 50/12
VZ 100/18
VZ 150/18
VZ 200/18
VZ 400/24
D
150 (6)
150 (6)
225 (9)
300 (12)
300 (12)
450 (18)
450 (18)
450 (18)
600 (24)
D1
25 (1)
25 (1)
25 (1)
40 (1.5)
40 (1.5)
40 (1.5)
40 (1.5)
40 (1.5)
40 (1.5)
L
460 (18.1)
720 (28.4)
750 (29.5)
635 (25)
915 (36)
89 (35)
1195 (47)
1500 (59)
1650 (65)
L1
60 (2.4)
60 (2.4)
60 (2.4)
60 (2.5)
60 (2.5)
60 (2.5)
60 (2.5)
60 (2.5)
60 (2.5)
Working
Cap. (lit.)
5
10
20
30
50
100
150
200
400

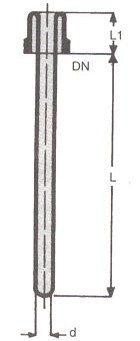

THERMOMETER POCKET
Cat. Ref.
TP 1/100
TP 1
TP 1/300
TP 1.5
D
25 (1)
25 (1)
25 (1)
25 (1)
L
100 (4)
140 (5.5)
330 (13)
140 (5.5)
L1
50 (2)
50 (2)
50 (2)
50 (2)
